Презентация, доклад на тему Types of welded joints
Содержание
1. Butt joint: In Butt welded type, the parts lie in the same plane and are joined at their edges.

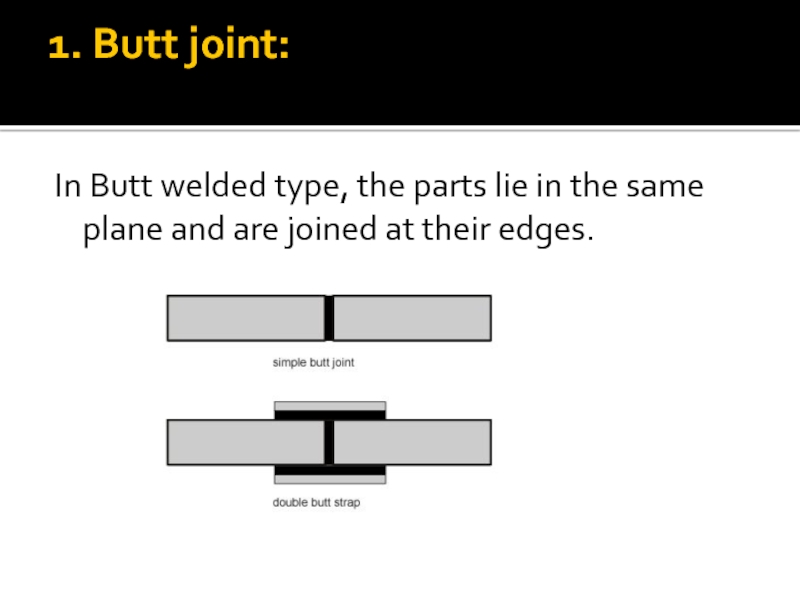

Слайд 21. Butt joint:
In Butt welded type, the parts lie in
the same plane and are joined at their edges.

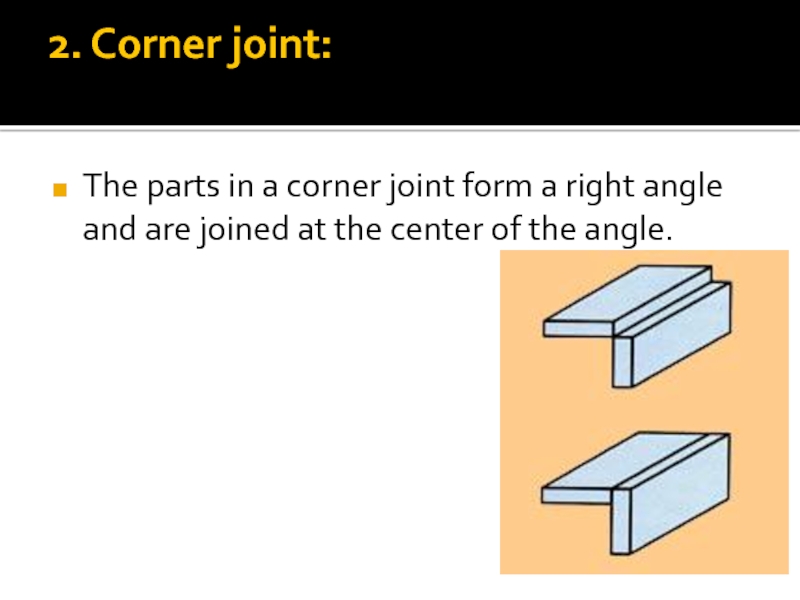

Слайд 32. Corner joint:
The parts in a corner joint form a right
angle and are joined at the center of the angle.

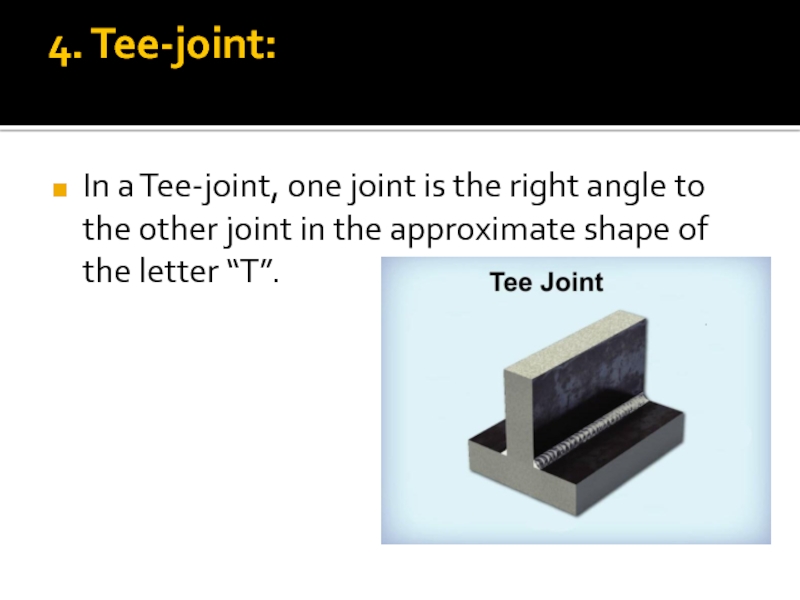

Слайд 54. Tee-joint:
In a Tee-joint, one joint is the right angle to
the other joint in the approximate shape of the letter “T”.

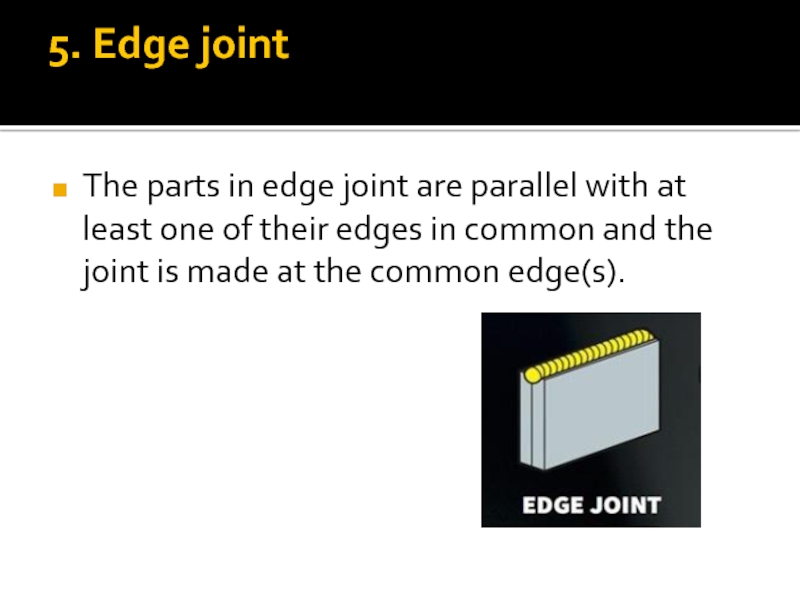

Слайд 65. Edge joint
The parts in edge joint are parallel with at
least one of their edges in common and the joint is made at the common edge(s).

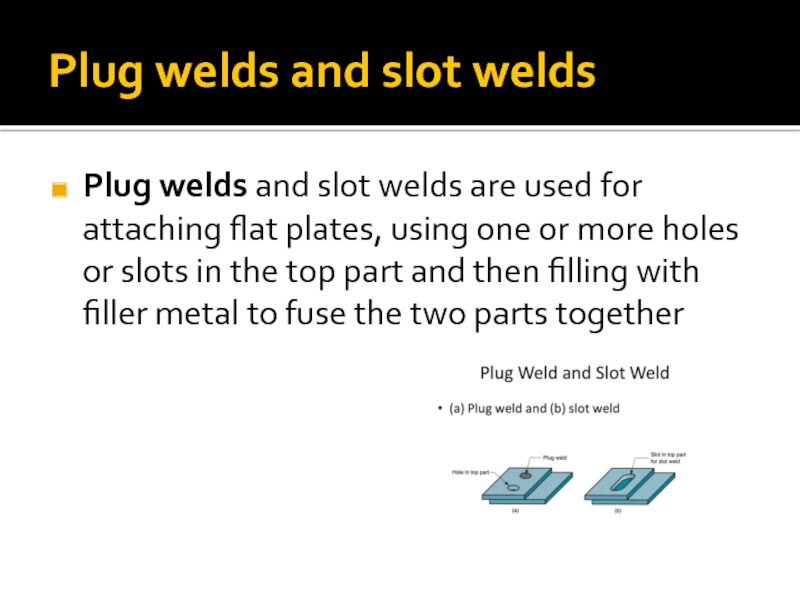

Слайд 7Plug welds and slot welds
Plug welds and slot welds are used
for attaching flat plates, using one or more holes or slots in the top part and then filling with filler metal to fuse the two parts together
