Презентация, доклад по английскому языку на тему Pre-flight check
Содержание
- 1. Презентация по английскому языку на тему Pre-flight check
- 2. Before Getting In the Glider:Assess the conditions

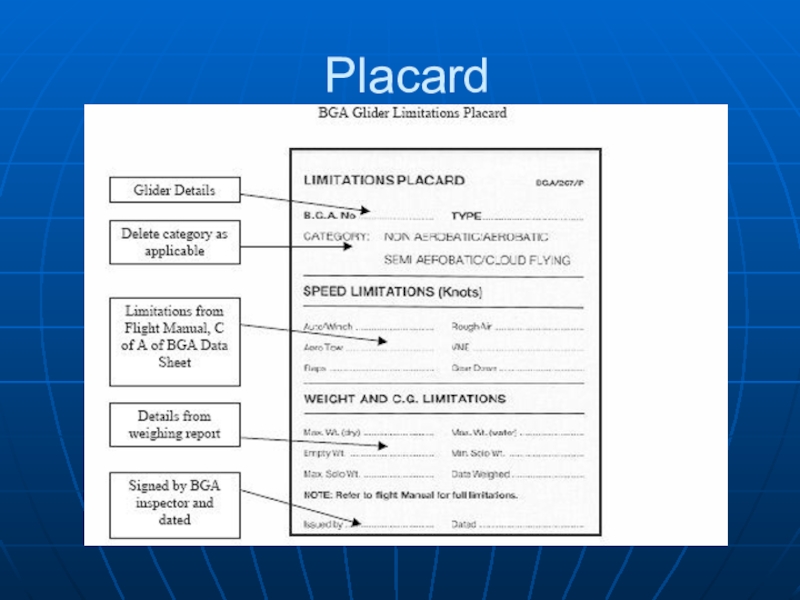

- 3. Placard

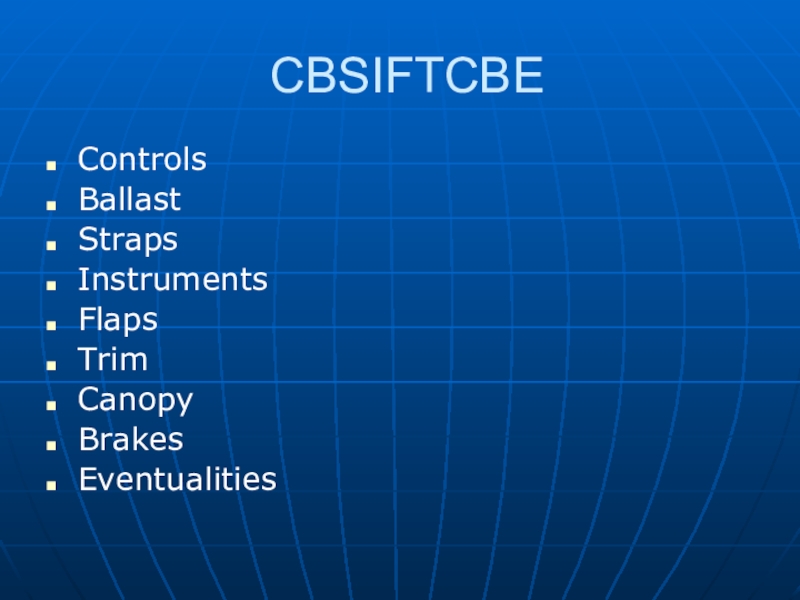

- 4. CBSIFTCBEControlsBallastStrapsInstrumentsFlapsTrimCanopyBrakesEventualities
- 5. ControlsControls are full and free:Move the stick
- 6. BallastI am over the minimum solo weight

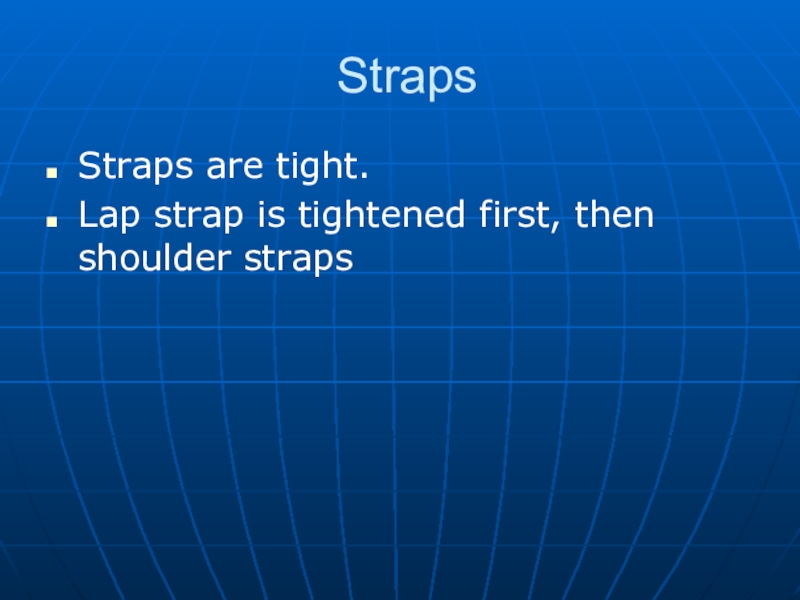

- 7. StrapsStraps are tight.Lap strap is tightened first, then shoulder straps
- 8. InstrumentsInstruments are zeroed, no broken glass.Altimeter is
- 9. ASIASI is at zero, often a white

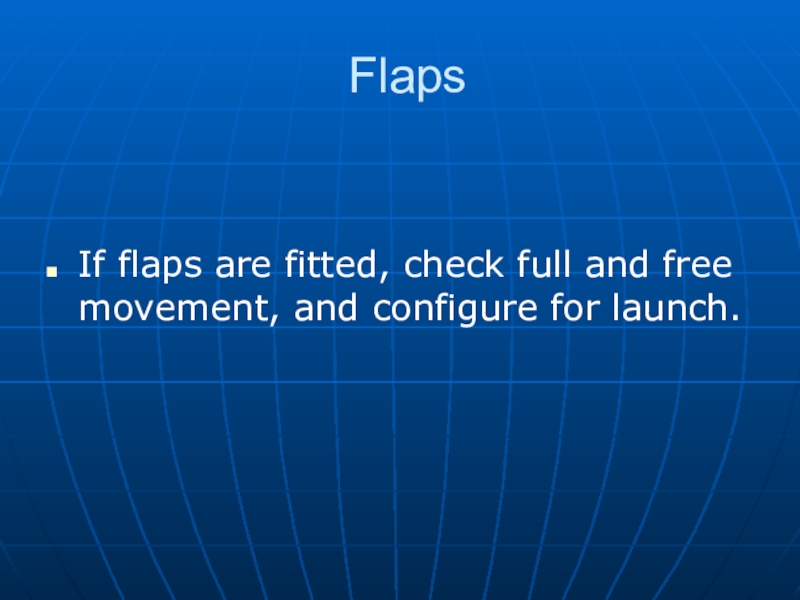

- 10. FlapsIf flaps are fitted, check full and free movement, and configure for launch.

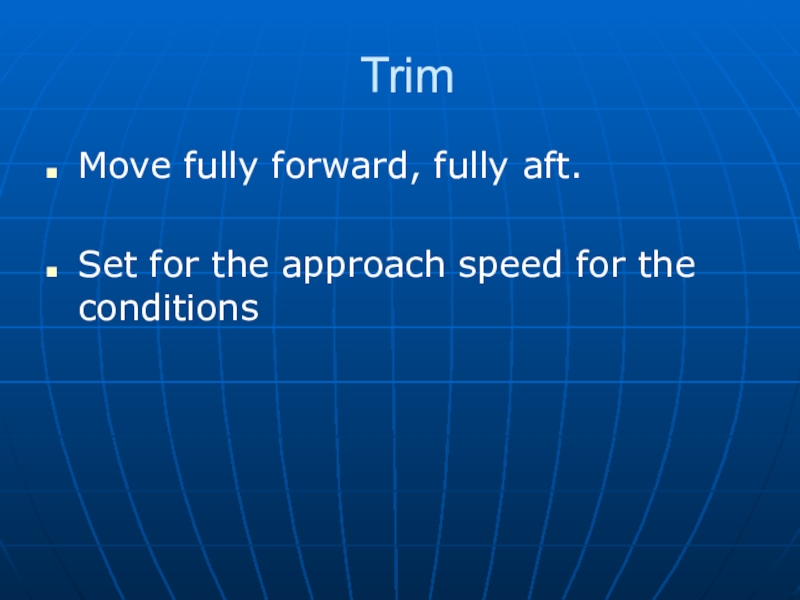

- 11. TrimMove fully forward, fully aft.Set for the approach speed for the conditions

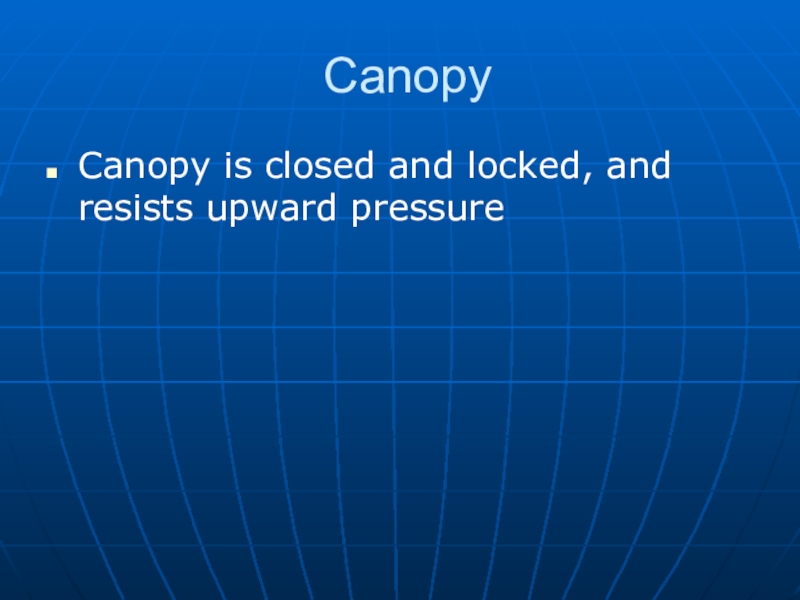

- 12. CanopyCanopy is closed and locked, and resists upward pressure
- 13. EventualitiesCheck that conditions have not changed since
- 14. Accept the Cable‘Brakes Closed and Locked, Cable
Before Getting In the Glider:Assess the conditions and your landing options in case of a launch failure.Make sure you meet the Ballast requirements.If you are not familiar with the aircraft, read the placard.

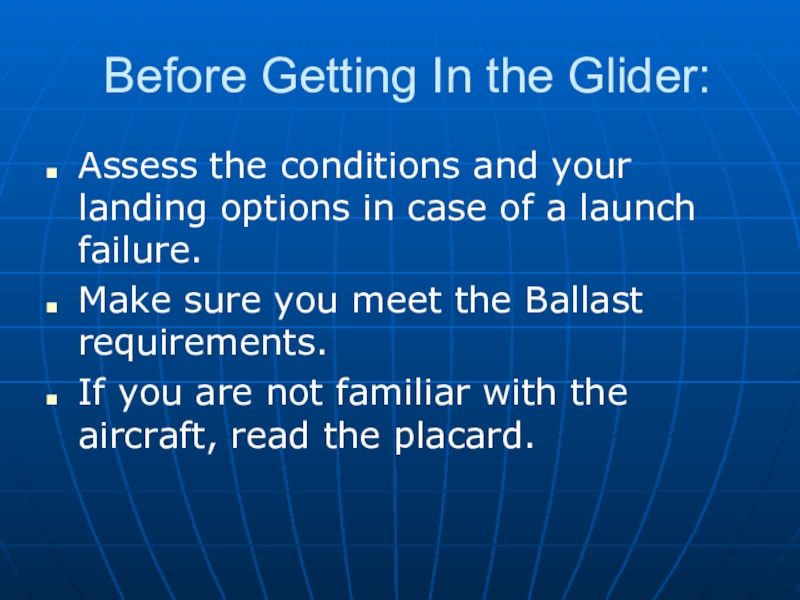

Слайд 2Before Getting In the Glider:
Assess the conditions and your landing options
in case of a launch failure.
Make sure you meet the Ballast requirements.
If you are not familiar with the aircraft, read the placard.
Make sure you meet the Ballast requirements.
If you are not familiar with the aircraft, read the placard.

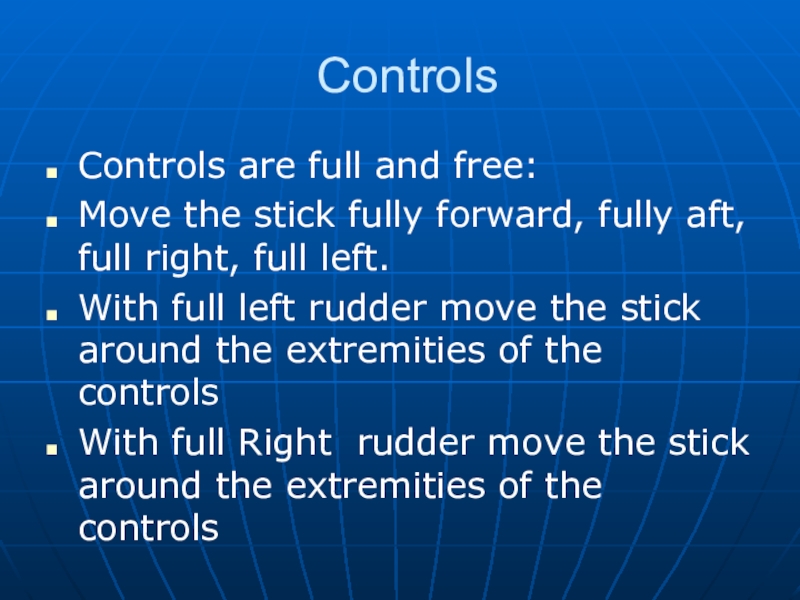

Слайд 5Controls
Controls are full and free:
Move the stick fully forward, fully aft,
full right, full left.
With full left rudder move the stick around the extremities of the controls
With full Right rudder move the stick around the extremities of the controls
With full left rudder move the stick around the extremities of the controls
With full Right rudder move the stick around the extremities of the controls

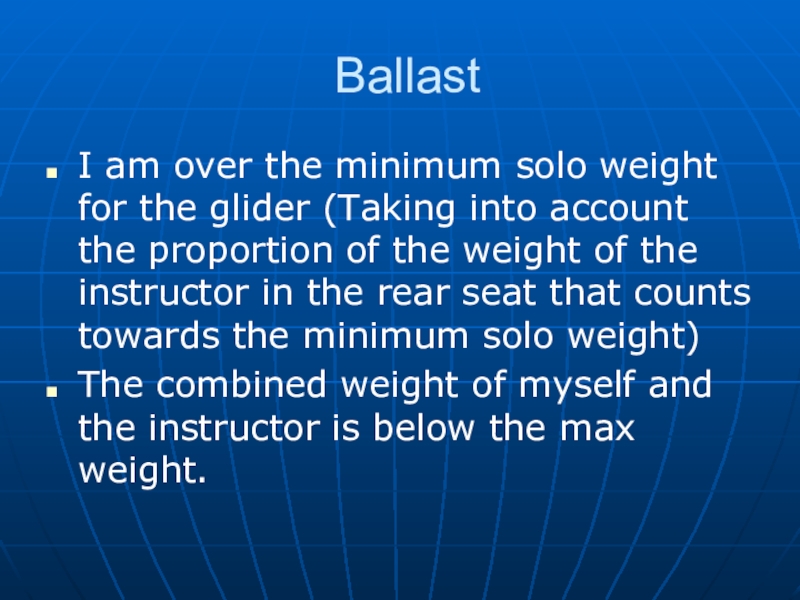

Слайд 6Ballast
I am over the minimum solo weight for the glider (Taking
into account the proportion of the weight of the instructor in the rear seat that counts towards the minimum solo weight)
The combined weight of myself and the instructor is below the max weight.
The combined weight of myself and the instructor is below the max weight.

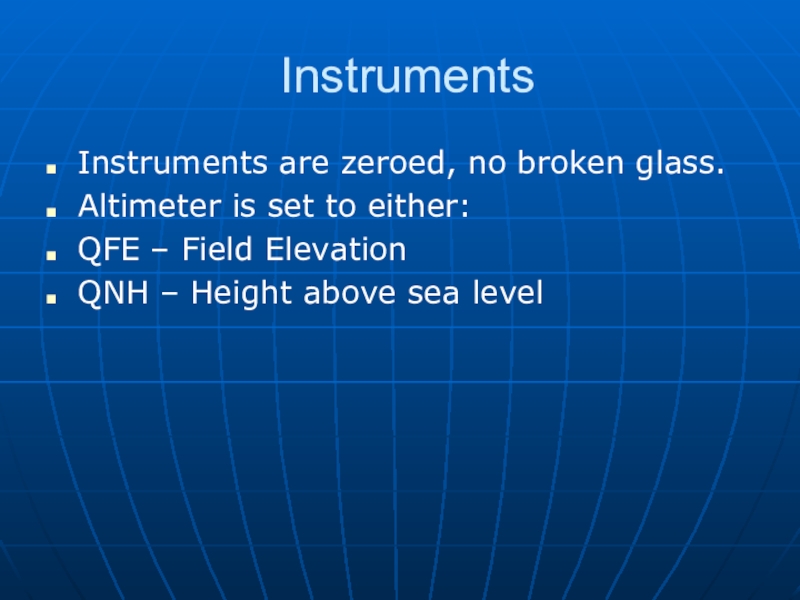

Слайд 8Instruments
Instruments are zeroed, no broken glass.
Altimeter is set to either:
QFE –
Field Elevation
QNH – Height above sea level
QNH – Height above sea level

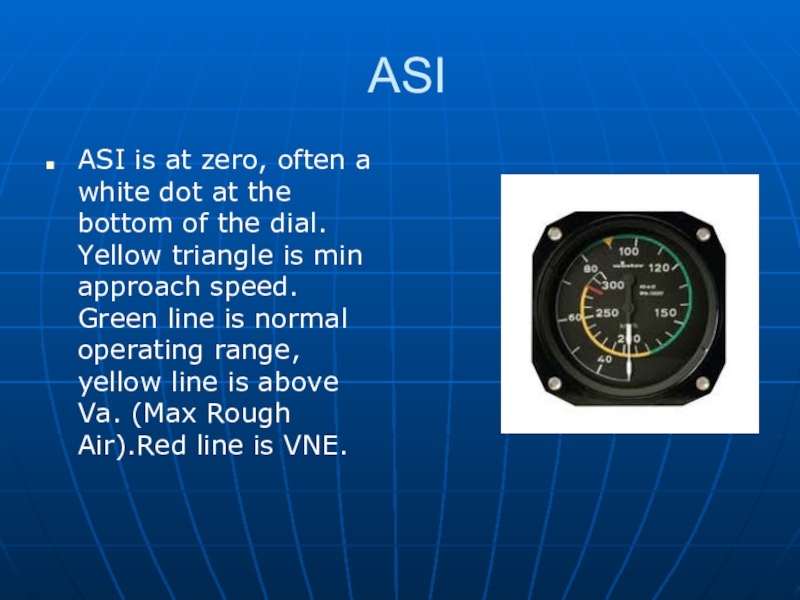

Слайд 9ASI
ASI is at zero, often a white dot at the bottom
of the dial. Yellow triangle is min approach speed. Green line is normal operating range, yellow line is above Va. (Max Rough Air).Red line is VNE.

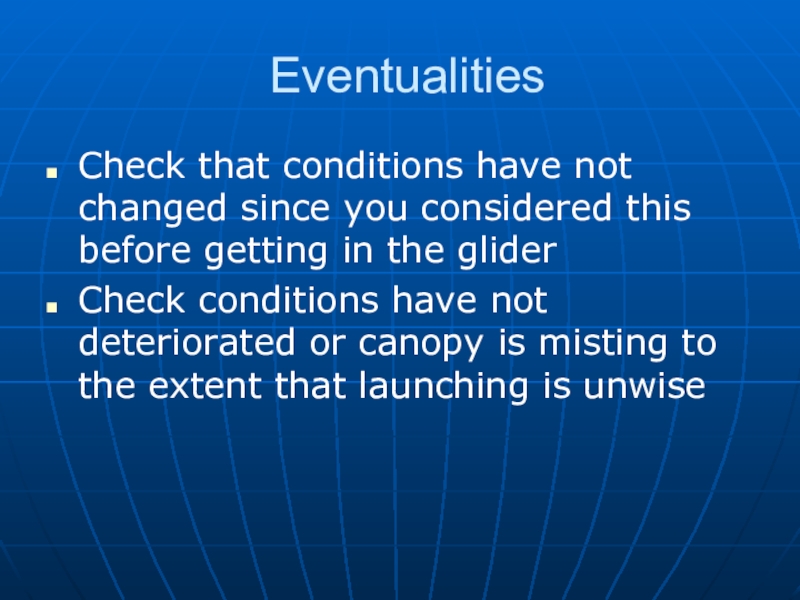

Слайд 13Eventualities
Check that conditions have not changed since you considered this before
getting in the glider
Check conditions have not deteriorated or canopy is misting to the extent that launching is unwise
Check conditions have not deteriorated or canopy is misting to the extent that launching is unwise

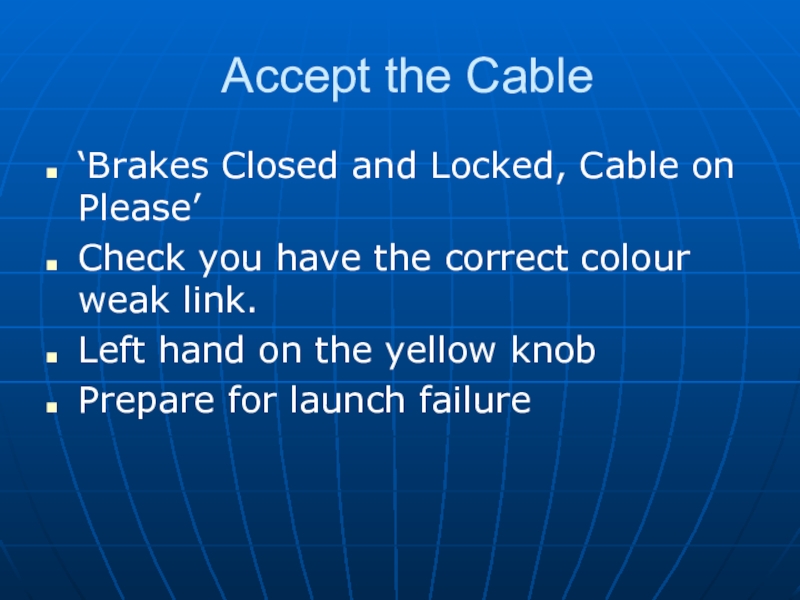

Слайд 14Accept the Cable
‘Brakes Closed and Locked, Cable on Please’
Check you have
the correct colour weak link.
Left hand on the yellow knob
Prepare for launch failure
Left hand on the yellow knob
Prepare for launch failure
