Презентация, доклад по английскому языку
Содержание
- 1. Презентация по английскому языку
- 2. Pointer UGR-4UK is intended to indicate the
- 3. 1, 9-housing; 2-arrow 3-index; 4-brush 5-resolver-receiver; 6-transformer
- 4. The principle of operation of the course
- 5. Control panel (Fig.8) serves to control the
- 6. This device facilitates the calculation of courses
Pointer UGR-4UK is intended to indicate the aircraft heading, rotation angles of bearing of radio station, course angles of the radio station. Included in course system GMK-1E

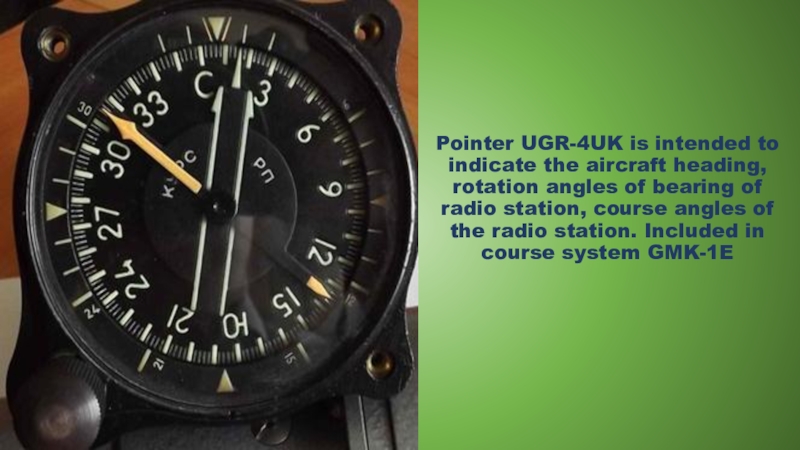

Слайд 2Pointer UGR-4UK is intended to indicate the aircraft heading, rotation angles
of bearing of radio station, course angles of the radio station. Included in course system GMK-1E

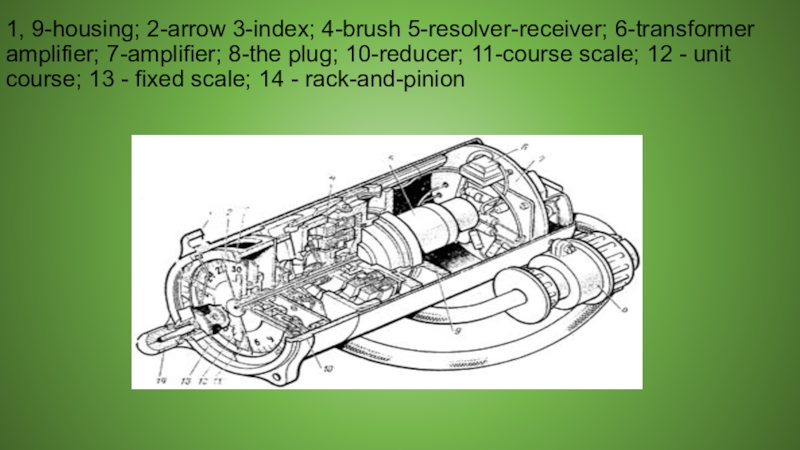

Слайд 31, 9-housing; 2-arrow 3-index; 4-brush 5-resolver-receiver; 6-transformer amplifier; 7-amplifier; 8-the plug;
10-reducer; 11-course scale; 12 - unit course; 13 - fixed scale; 14 - rack-and-pinion

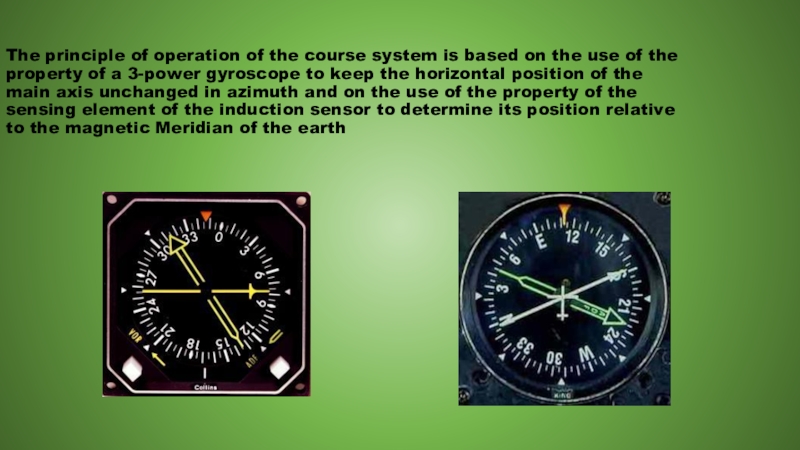

Слайд 4The principle of operation of the course system is based on
the use of the property of a 3-power gyroscope to keep the horizontal position of the main axis unchanged in azimuth and on the use of the property of the sensing element of the induction sensor to determine its position relative to the magnetic Meridian of the earth

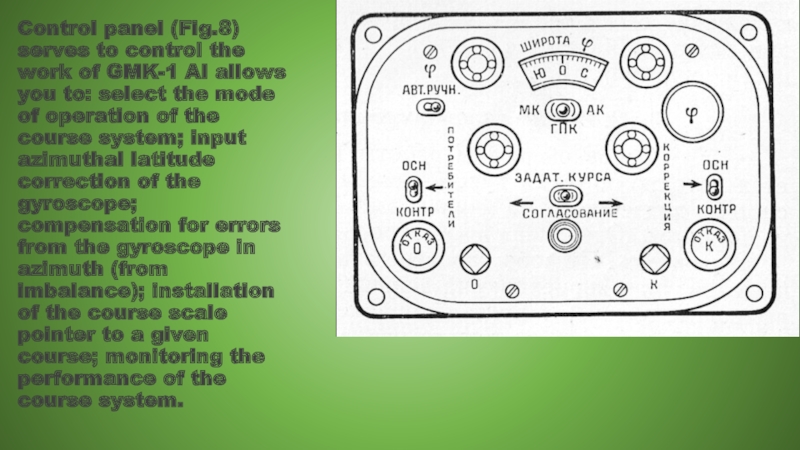

Слайд 5Control panel (Fig.8) serves to control the work of GMK-1 AI
allows you to: select the mode of operation of the course system; input azimuthal latitude correction of the gyroscope; compensation for errors from the gyroscope in azimuth (from imbalance); installation of the course scale pointer to a given course; monitoring the performance of the course system.

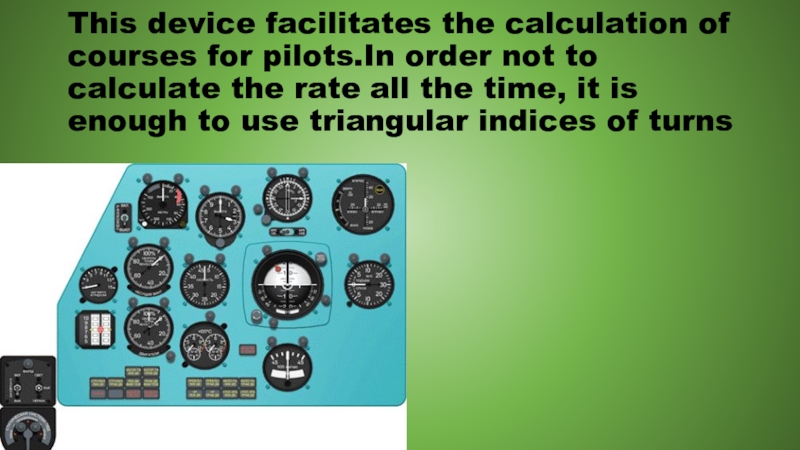

Слайд 6This device facilitates the calculation of courses for pilots.In order not
to calculate the rate all the time, it is enough to use triangular indices of turns
