Презентация, доклад по английскому языку
Содержание

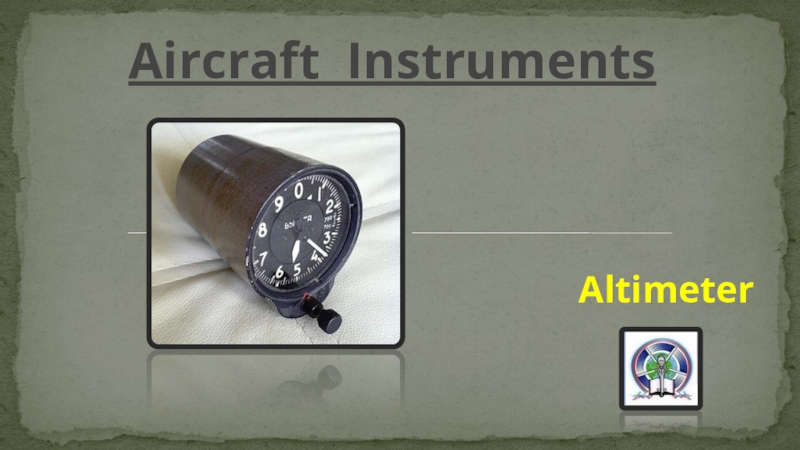

- 1. Презентация по английскому языку
- 2. 1. Pitot tubemeasures dynamic and static pressures
- 3. 2. Static tubemeasures static pressure. The tube
- 4. Measures the pressure in the atmosphere, which
- 5. Made up of a stack of aneroid
- 6. 1. Pressure :the atmospheric pressure changes when
- 7. 3. Mountain Effect :when flying near mountains,
- 8. Thank you for attention!A. Khopatnyukovskiy 2019
1. Pitot tubemeasures dynamic and static pressures and is positioned to be clear of the slipstream and facing the line of flight.THE AIRSPEED INDICATOR IS THE ONLY INSTRUMENT CONNECTEDTO THE PITOT PRESSURE SOURCE.Pitot/Static System

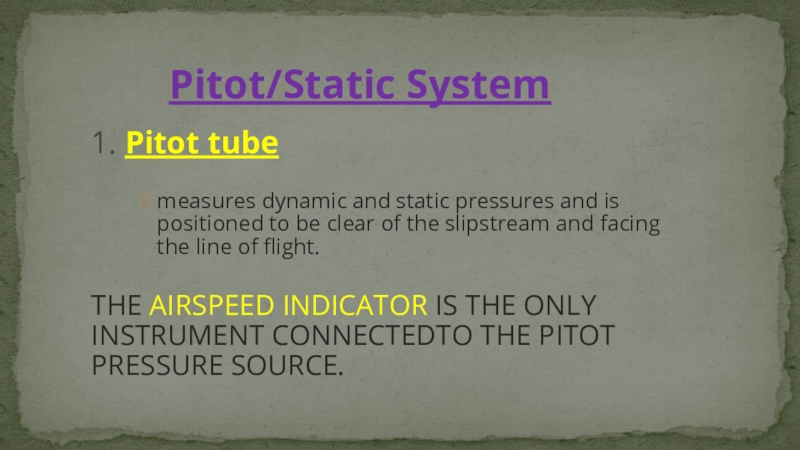

Слайд 21. Pitot tube
measures dynamic and static pressures and is positioned
to be clear of the slipstream and facing the line of flight.
THE AIRSPEED INDICATOR IS THE ONLY INSTRUMENT CONNECTEDTO THE PITOT PRESSURE SOURCE.
THE AIRSPEED INDICATOR IS THE ONLY INSTRUMENT CONNECTEDTO THE PITOT PRESSURE SOURCE.
Pitot/Static System

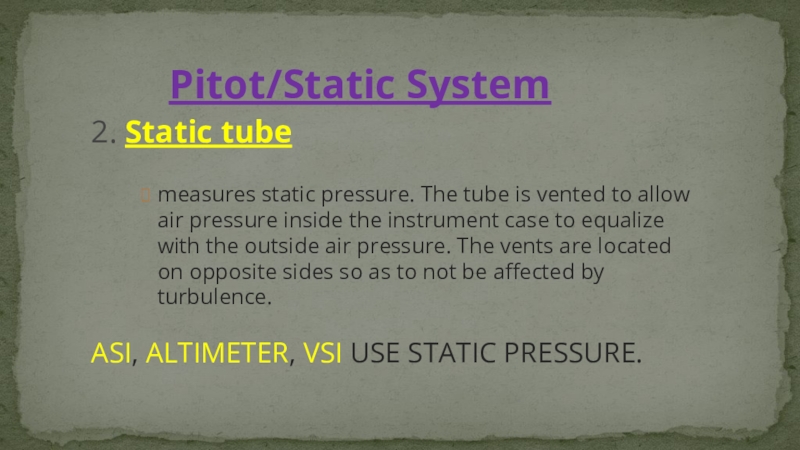

Слайд 32. Static tube
measures static pressure. The tube is vented to allow
air pressure inside the instrument case to equalize with the outside air pressure. The vents are located on opposite sides so as to not be affected by turbulence.
ASI, ALTIMETER, VSI USE STATIC PRESSURE.
ASI, ALTIMETER, VSI USE STATIC PRESSURE.
Pitot/Static System

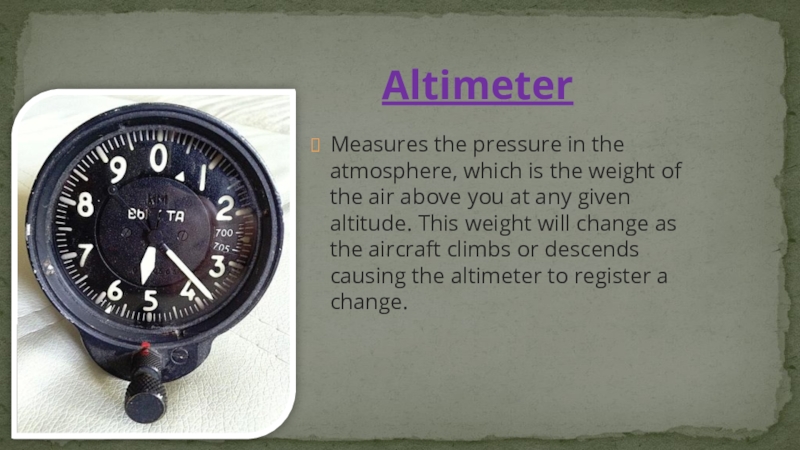

Слайд 4Measures the pressure in the atmosphere, which is the weight of
the air above you at any given altitude. This weight will change as the aircraft climbs or descends causing the altimeter to register a change.
Altimeter

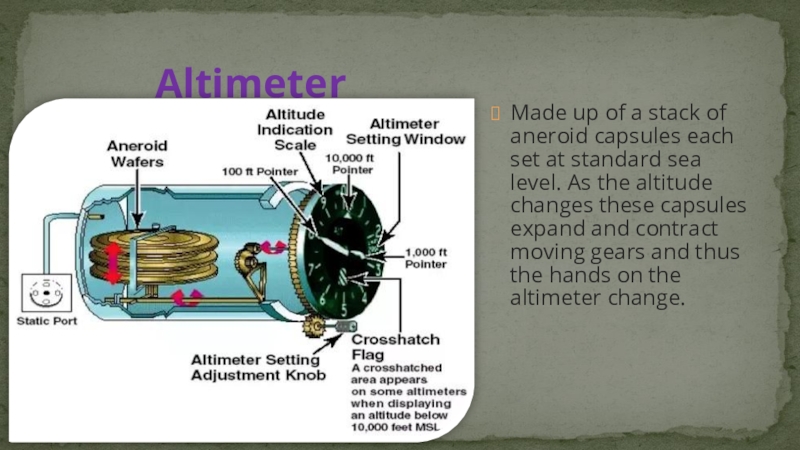

Слайд 5Made up of a stack of aneroid capsules each set at
standard sea level. As the altitude changes these capsules expand and contract moving gears and thus the hands on the altimeter change.
Altimeter

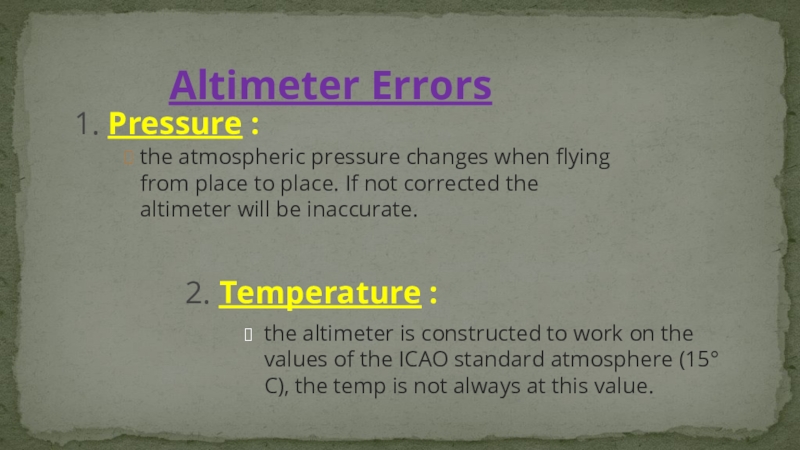

Слайд 61. Pressure :
the atmospheric pressure changes when flying from place to
place. If not corrected the altimeter will be inaccurate.
Altimeter Errors
2. Temperature :
the altimeter is constructed to work on the values of the ICAO standard atmosphere (15°C), the temp is not always at this value.

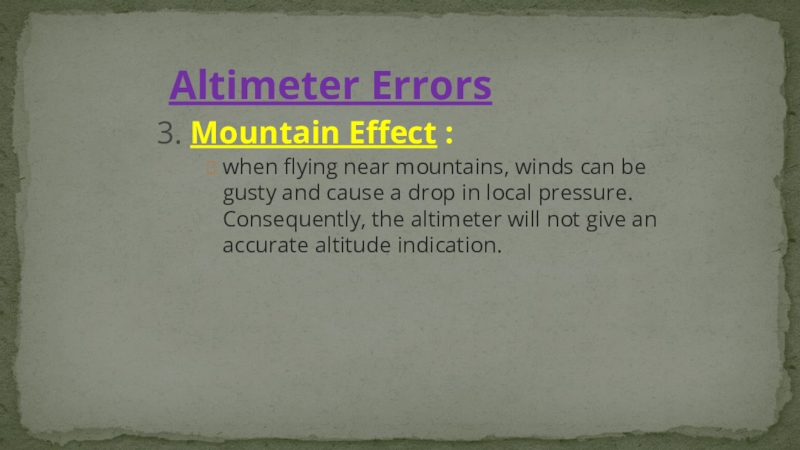

Слайд 73. Mountain Effect :
when flying near mountains, winds can be gusty
and cause a drop in local pressure. Consequently, the altimeter will not give an accurate altitude indication.
Altimeter Errors
