Слайд 1ГБПОУ МО «Московский областной медицинский колледж №2»
Коломенский филиал
Heart
ПРЕЗЕНТАЦИЯ К ТЕМЕ
«

СЕРДЦЕ»

ОГСЭ.03 АНГЛИЙСКИЙ ЯЗЫК
ПРЕПОДАВАТЕЛЬ НИКОЛЬСКИЙ А.А.

ГБПОУ МО «Московский областной медицинский колледж №2»Коломенский филиалHeartПРЕЗЕНТАЦИЯ К ТЕМЕ « СЕРДЦЕ» ОГСЭ.03 АНГЛИЙСКИЙ ЯЗЫКПРЕПОДАВАТЕЛЬ НИКОЛЬСКИЙ А.А.

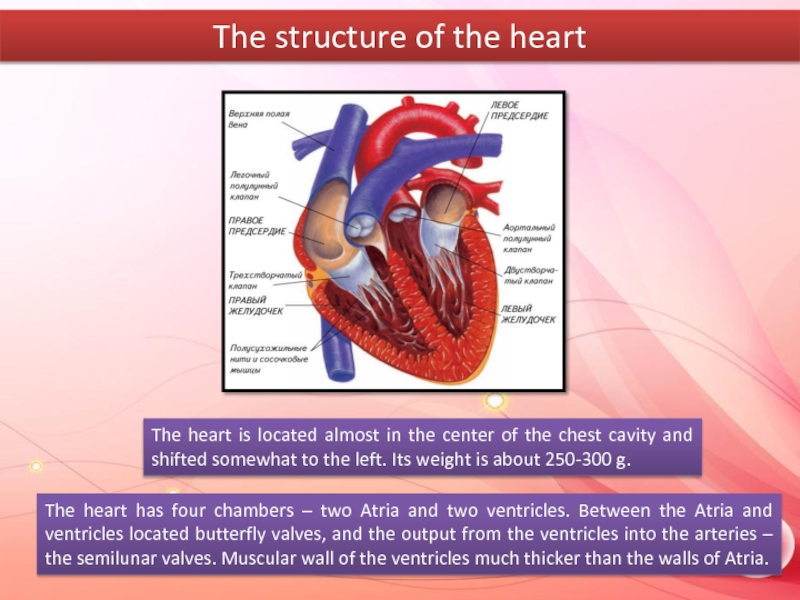

Слайд 2The structure of the heart
The heart is located almost in the

center of the chest cavity and shifted somewhat to the left. Its weight is about 250-300 g.

The heart has four chambers – two Atria and two ventricles. Between the Atria and ventricles located butterfly valves, and the output from the ventricles into the arteries – the semilunar valves. Muscular wall of the ventricles much thicker than the walls of Atria.

The structure of the heartThe heart is located almost in the center of the chest cavity and

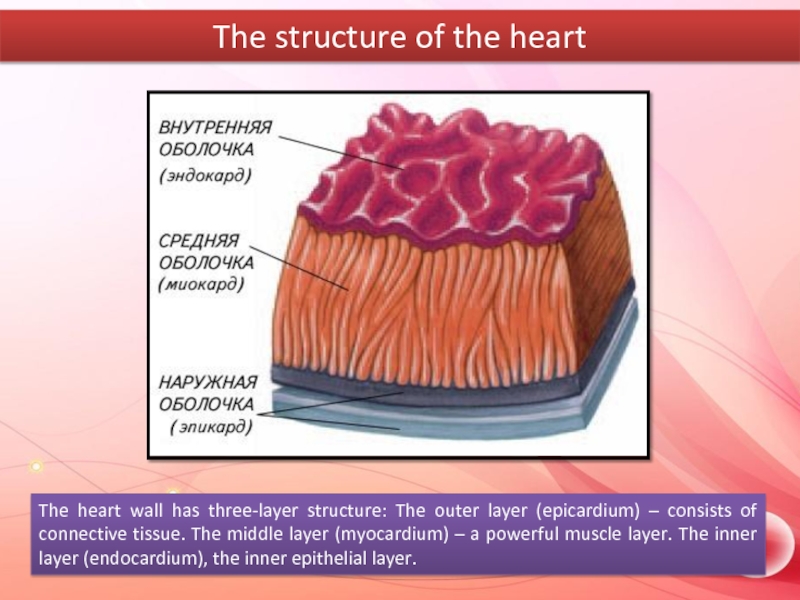

Слайд 3The structure of the heart
The heart wall has three-layer structure: The

outer layer (epicardium) – consists of connective tissue. The middle layer (myocardium) – a powerful muscle layer. The inner layer (endocardium), the inner epithelial layer.
The structure of the heartThe heart wall has three-layer structure: The outer layer (epicardium) – consists of

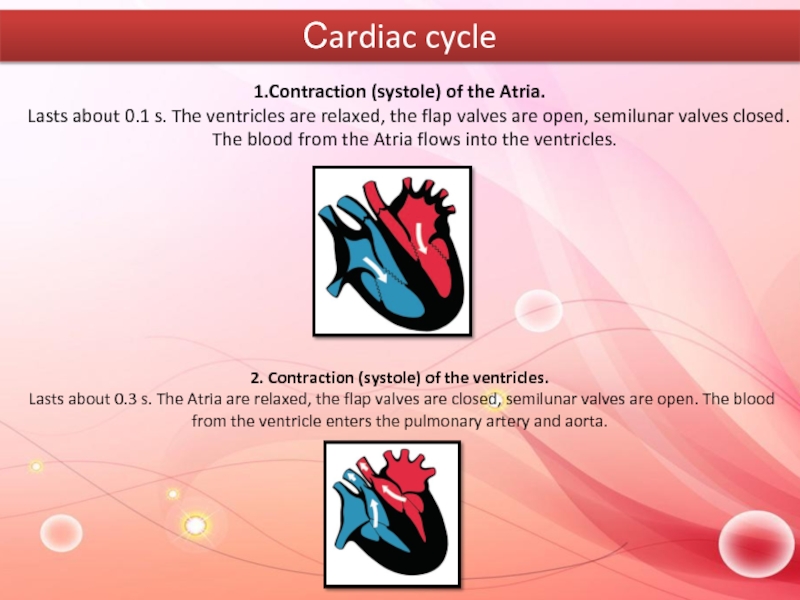

Слайд 4Сardiac cycle
1.Contraction (systole) of the Atria.
Lasts about 0.1 s.

The ventricles are relaxed, the flap valves are open, semilunar valves closed. The blood from the Atria flows into the ventricles.

2. Contraction (systole) of the ventricles.
Lasts about 0.3 s. The Atria are relaxed, the flap valves are closed, semilunar valves are open. The blood from the ventricle enters the pulmonary artery and aorta.

Сardiac cycle1.Contraction (systole) of the Atria.  Lasts about 0.1 s. The ventricles are relaxed, the flap

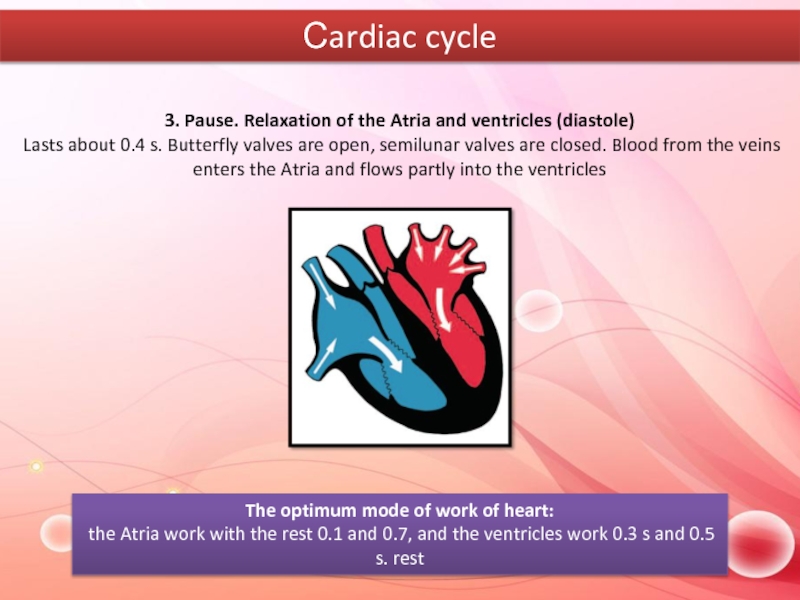

Слайд 53. Pause. Relaxation of the Atria and ventricles (diastole)
Lasts about

0.4 s. Butterfly valves are open, semilunar valves are closed. Blood from the veins enters the Atria and flows partly into the ventricles

The optimum mode of work of heart:
the Atria work with the rest 0.1 and 0.7, and the ventricles work 0.3 s and 0.5 s. rest

Сardiac cycle

3. Pause. Relaxation of the Atria and ventricles (diastole) Lasts about 0.4 s. Butterfly valves are open,

Слайд 6Automaticity of the heart
The sinus node is located in the upper

part of the right atrium, between the confluence of the upper and lower Vena cava.
Atrioventricular node— located near the septum between the Atria and ventricles

Automaticity – the ability of the heart to contract without external stimuli is influenced by impulses that arise in him.
Automaticity of the heart muscle provides the order of phases of the cardiac cycle.

Automaticity of the heartThe sinus node is located in the upper part of the right atrium, between

Слайд 7Regulation of heart
The sympathetic nervous system strengthens the heart
Nervous regulation
The parasympathetic

nervous system weakens the heart

Humoral regulation of heart activity is provided by the substances circulating in the blood

Regulation of heartThe sympathetic nervous system strengthens the heartNervous regulationThe parasympathetic nervous system weakens the heartHumoral regulation

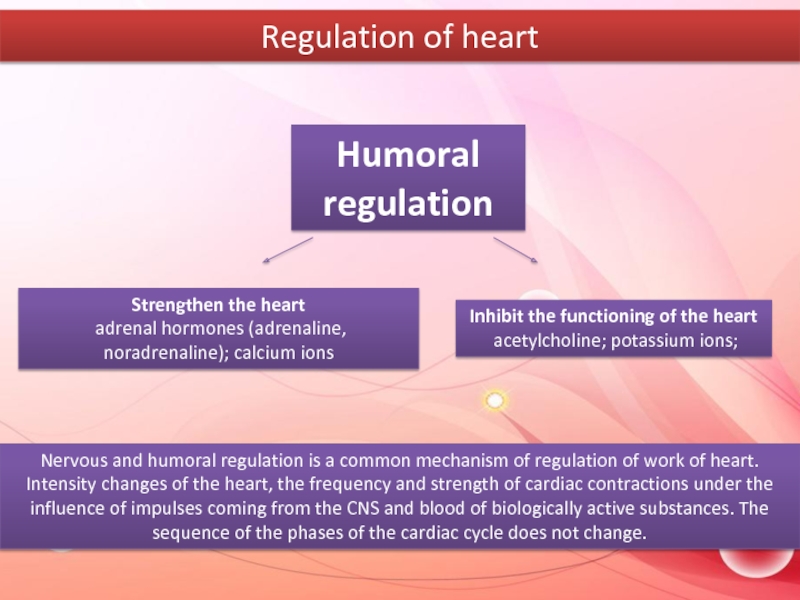

Слайд 8Regulation of heart
Humoral regulation
Strengthen the heart
adrenal hormones (adrenaline, noradrenaline); calcium

ions

Inhibit the functioning of the heart
acetylcholine; potassium ions;

Nervous and humoral regulation is a common mechanism of regulation of work of heart. Intensity changes of the heart, the frequency and strength of cardiac contractions under the influence of impulses coming from the CNS and blood of biologically active substances. The sequence of the phases of the cardiac cycle does not change.

Regulation of heartHumoral regulationStrengthen the heart adrenal hormones (adrenaline, noradrenaline); calcium ionsInhibit the functioning of the heart

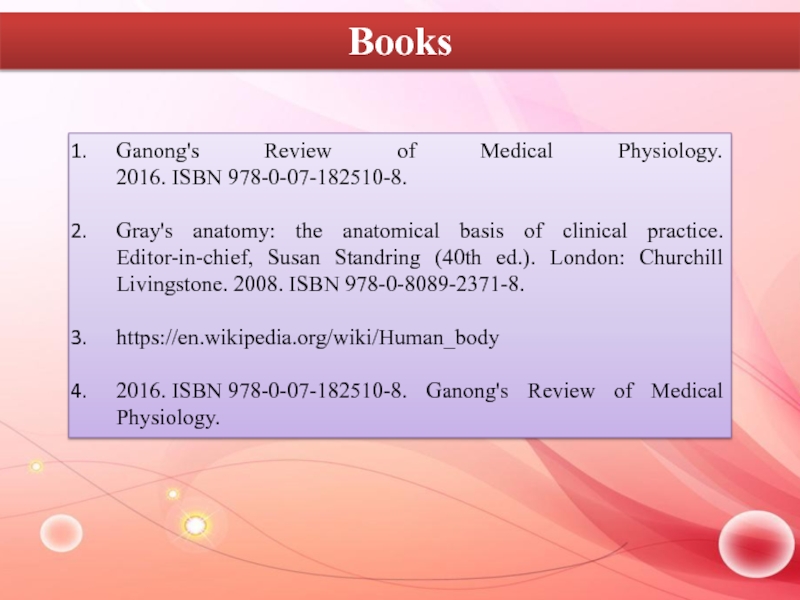

Слайд 9Books
Ganong's Review of Medical Physiology. 2016. ISBN 978-0-07-182510-8.

Gray's anatomy: the anatomical basis of

clinical practice. Editor-in-chief, Susan Standring (40th ed.). London: Churchill Livingstone. 2008. ISBN 978-0-8089-2371-8.

https://en.wikipedia.org/wiki/Human_body

2016. ISBN 978-0-07-182510-8. Ganong's Review of Medical Physiology.
BooksGanong's Review of Medical Physiology. 2016. ISBN 978-0-07-182510-8.Gray's anatomy: the anatomical basis of clinical practice. Editor-in-chief, Susan Standring (40th
